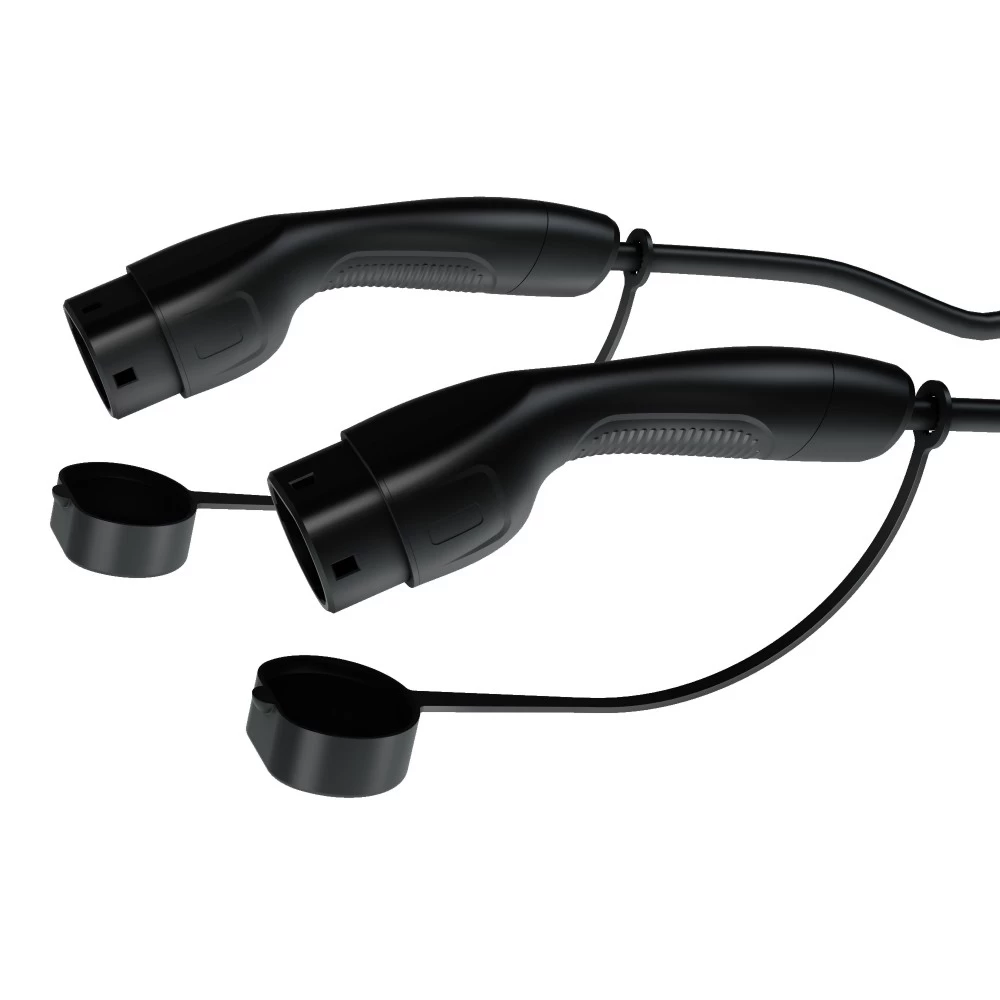

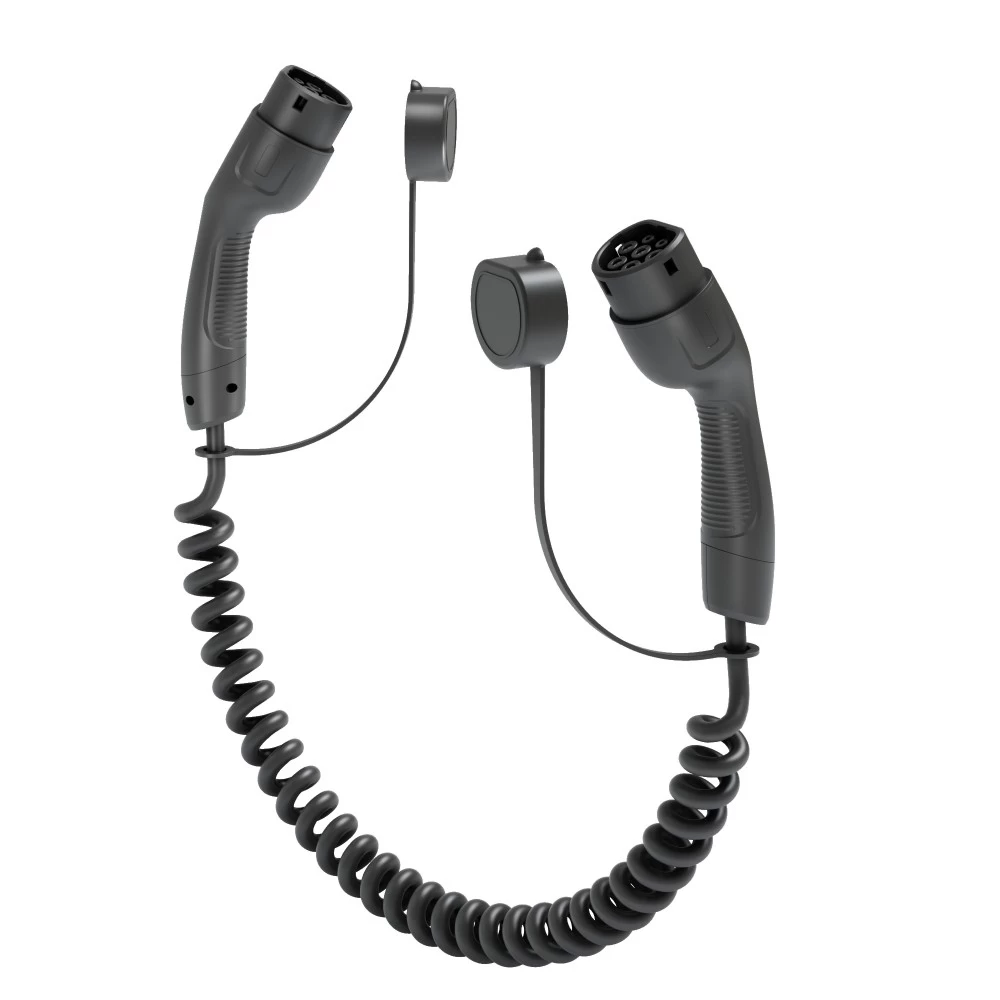

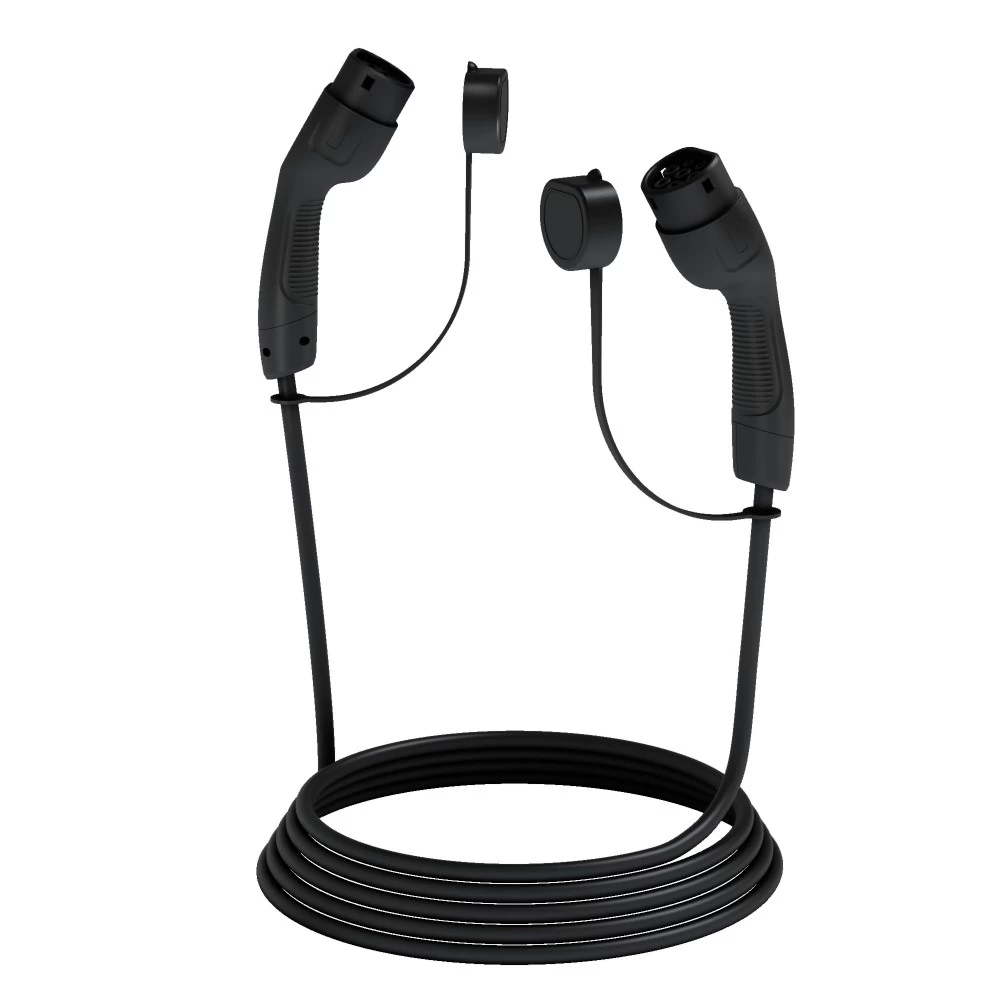

EN 16A 3-phase AC charging cable on supply side
Model: MBO-F16-01
Specifications & Details
Product model: MBO-F16-03
Double head gun assembly combination model: MBO-F16-03 To MBO-C16-03
Rated voltage: 250V/480V AC
Rated current: 16A Max
Working temperature: -20°C ~ +50°C
Protection level: IP55
Fire-protection Rating: UL94 V-0
Standard adopted: IEC 62196-2
Safety performance and feature of the product：
1. Comply with: IEC 62196-2 certification standard requirements.
2. The plug uses the one-piece design of small waist, which is advanced in appearance, grand, neat and beautiful. The hand-held design conforms to the ergonomics principle, having the anti-skid touch and comfortable grip.
3. Excellent protection performance, the protection grade reaches IP55.
4. Reliable material: inflaming retarding, environmental protection, wear resistance, rolling resistance (2T), high temperature resistance, low temperature resistance, impact resistance, high oil resistance, UV resistance.
5.The cable is made of 99.99% oxygen-free copper rod with the best electrical conductivity. The sheath is made of TPU material, which can withstand high temperature up to 105°C and is inflaming retarding, abrasion resistant and bending resistant. The unique cable design can prevent the cable from breaking core, winding and knot.
Double head gun assembly combination model: MBO-F16-03 To MBO-C16-03
Rated voltage: 250V/480V AC
Rated current: 16A Max
Working temperature: -20°C ~ +50°C
Protection level: IP55
Fire-protection Rating: UL94 V-0
Standard adopted: IEC 62196-2
Safety performance and feature of the product：
1. Comply with: IEC 62196-2 certification standard requirements.
2. The plug uses the one-piece design of small waist, which is advanced in appearance, grand, neat and beautiful. The hand-held design conforms to the ergonomics principle, having the anti-skid touch and comfortable grip.
3. Excellent protection performance, the protection grade reaches IP55.
4. Reliable material: inflaming retarding, environmental protection, wear resistance, rolling resistance (2T), high temperature resistance, low temperature resistance, impact resistance, high oil resistance, UV resistance.
5.The cable is made of 99.99% oxygen-free copper rod with the best electrical conductivity. The sheath is made of TPU material, which can withstand high temperature up to 105°C and is inflaming retarding, abrasion resistant and bending resistant. The unique cable design can prevent the cable from breaking core, winding and knot.
