Type2 3.5KW/7KW Single Phase AC 230V Portable EV Charger
Model: Q20-2
Specifications & Details
Features
Intelligent control:
WIFI+Bluetooth+App;
schedulable charging, schedulable power-off;
automatic current switching,manual current switching;
temperature-controlled power plugs;

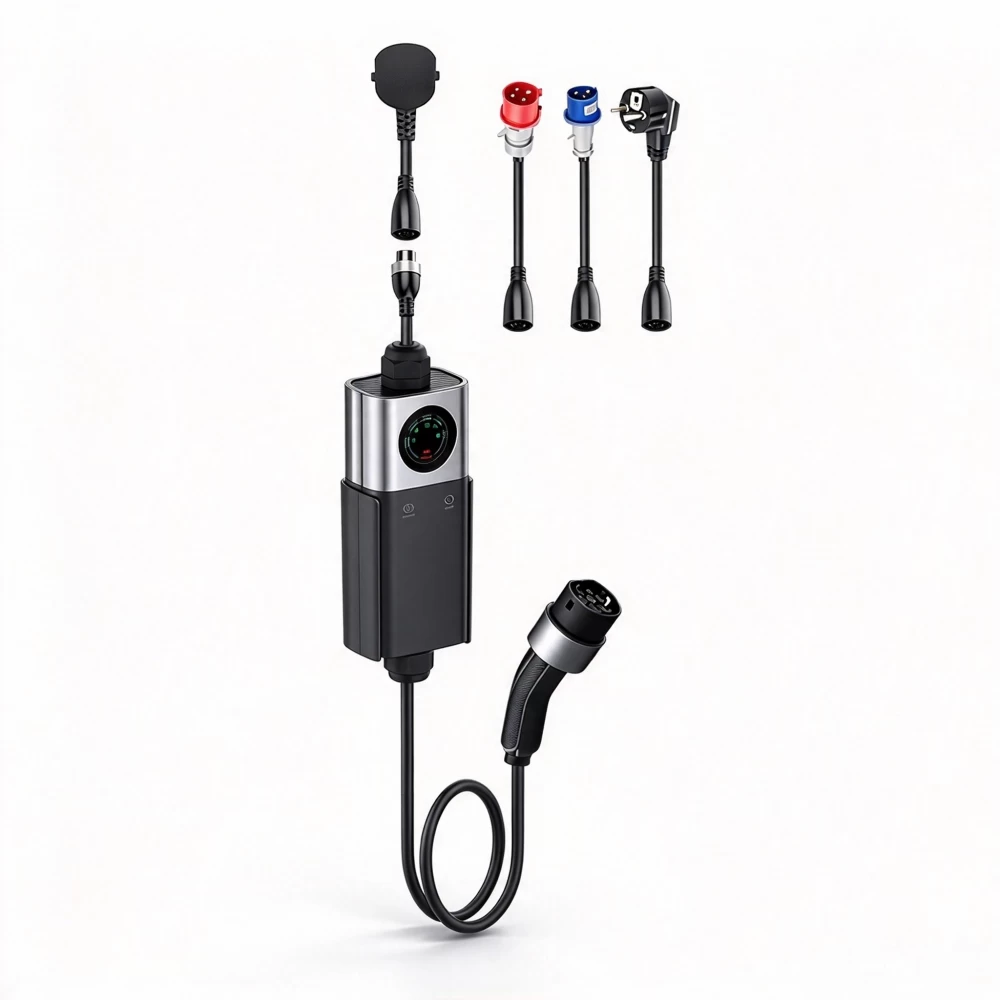

interchange-able universal aviation plugs;
support up to single phase 32A 7KW
Ingress Protection: IP66
Optional: Wifi+Bluetooth+App
Parameter
▶ Input voltage
Single-Phase AC 230V 50/60Hz (L+N+PE)
▶ Input current
AC 16A/32A
▶ Output voltage
Single-Phase AC 230V 50/60Hz (L+N+PE)
▶ Output current
max 32A(Adjustable range 6A-32A)
▶ Charging mode
Plug-and-Charge、schedulable charging、schedulable power-off
▶Network
Optional Wifi+Bluetooth+App
▶ RCD
Type A+DC6mA
▶Display

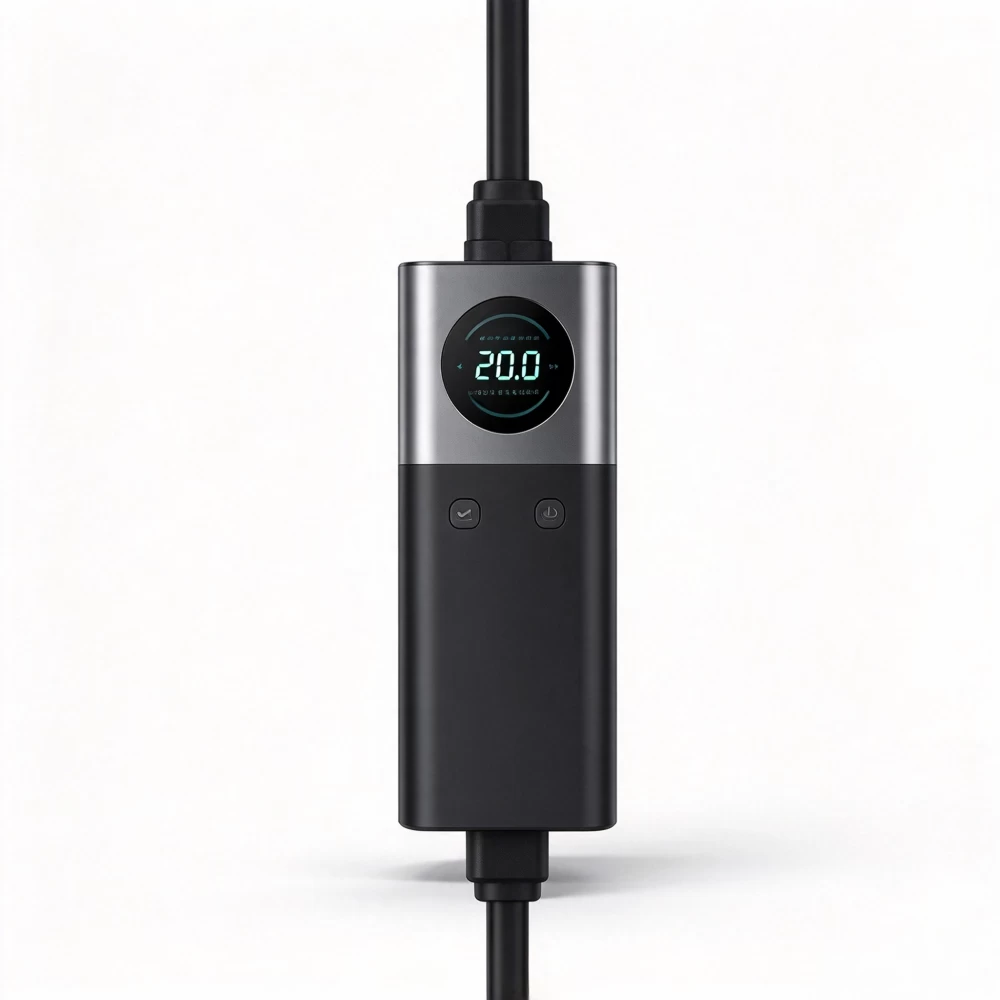

LED/2.8-inch LCD Screen
▶ Multi-protection
Overvoltage protection,undervoltage protection,grounding protection,lightning protection,leakage protection,flame retardant protection,overcurrent protection,intelligent temperaturecontrol protection,relay adhesion protection,input shutdown protection
